XSL-FO Parameters
The XSL-FO file generated by the XSLT stylesheets is converted to PDF, PostScript®,
RTF,
WordprocessingML, Office Open XML (.docx), OpenOffice/LibreOffice (.odt)
by the means of XSL-FO processors such as Apache FOP, RenderX
XEP, Antenna House XSL Formatter or XMLmind XSL-FO
Converter.
 |
Tip |
The following table lists the parameters specific to the stylesheets that generate
XSL-FO.
| Parameter | Value | Description |
| base-font-size |
Default value: '10pt'.
|
The size of the ``main font'' of the document. All the other font sizes are
computed relatively to this font size
|
| body-bottom-margin |
Length.
Default value: '0.5in'.
|

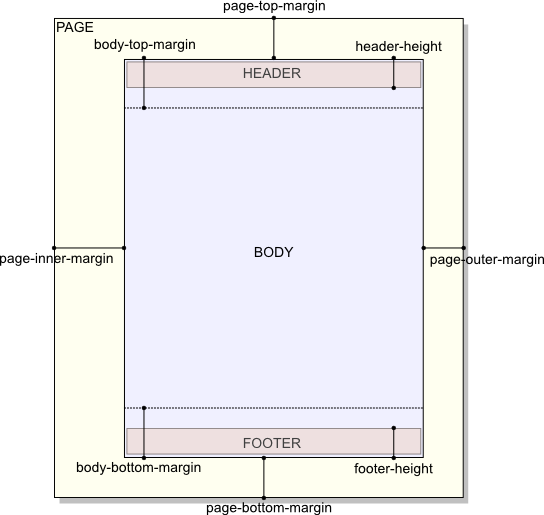

See Page areas below.
|
| body-font-family |
A string containing one or more font families separated by
commas.
Default value: 'serif'.
|
Specifies the family of the font used for the text of all elements except
topic titles.
|
| body-start-indent |
Length.
Default value: '2pc'.
|
Applies only to alternate XSLT stylesheet
ditac_install_dir/xsl/fo/fo_indent.xsl.
This stylesheet:
This stylesheet is invoked by passing option
-t ditac-xsl:fo/fo_indent.xsl to ditac.
Example of its output: manual-fop.pdf. |
| body-top-margin |
Length.
Default value: '0.5in'.
|
See Page areas below.
|
| choice-bullets |
A string containing one or more single characters separated by
whitespace.
Default value: '•' (BULLET).
|
Specify which bullet character to use for a
<choice>
element. Additional characters are used for nested <choice>
elements.Changing the value of this parameter may imply changing the
font-family attribute of the attribute-set
choice-label.
|
| equation-block-equation-width |
Length.
Default value: '90%'.
|
In a numbered <equation-block> element, this parameter
specifies the width of the column containing the equation. |
| equation-block-number-width |
Length.
Default value: '10%'.
|
In a numbered <equation-block> element, this parameter
specifies the width of the column containing the
<equation-number> element. |
| external-href-after |
String.
Default value: ']'.
|
Appended after the external URL referenced by an
<xref>
or <link> element. Ignored unless
show-external-links='yes'. |
| external-href-before |
String.
Default value: ' ['.
|
Separates the text of an
<xref> or
<link> element from its referenced external URL. Ignored
unless show-external-links='yes'. |
| footer-center |
String.
|
Specifies the contents of the central part of a page footer. See Specifying a header or a
footer.
Supports a
conditional specification.
Default
value:
two-sides even:: {{chapter-title}};;
two-sides part||chapter||appendices||appendix odd::¬
{{section1-title}};;
one-side:: {{chapter-title}}
|
| footer-center-width |
String representing an integer larger than or equal to 1.
Default value:
'6'.
|
Specifies the proportional width of the central part of a page footer. See
Specifying a header or a
footer.
Supports a conditional
specification.
|
| footer-height |
Length.
Default value: '0.4in'.
|
See Page areas below.
|
| footer-left |
String.
|
Specifies the contents of the left part of a page footer. See Specifying a header or a
footer.
Supports a
conditional specification.
Default
value:
two-sides even:: {{page-number}}
|
| footer-left-width |
String representing an integer larger than or equal to 1.
Default value:
'2'.
|
Specifies the proportional width of the left part of a page footer. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| footer-right |
String.
|
Specifies the contents of the right part of a page footer. See Specifying a header or a
footer.
Supports a
conditional specification.
Default
value:
two-sides first||odd:: {{page-number}};;
one-side:: {{page-number}}
|
| footer-right-width |
String representing an integer larger than or equal to 1.
Default value:
'2'.
|
Specifies the proportional width of the right part of a page footer. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| footer-separator | Allowed values are: 'yes' and 'no'.
Default value:
'yes'.
|
Specifies whether an horizontal rule should be drawn above the page
footer.
|
| header-center |
String.
Default value: '{{document-title}}'.
|
Specifies the contents of the central part of a page header. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| header-center-width |
String representing an integer larger than or equal to 1.
Default value:
'6'.
|
Specifies the proportional width of the central part of a page header. See
Specifying a header or a
footer.
Supports a conditional
specification.
|
| header-height |
Length.
Default value: '0.4in'.
|
See Page areas below.
|
| header-left |
String.
Default value: ''.
|
Specifies the contents of the left part of a page header. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| header-left-width |
String representing an integer larger than or equal to 1.
Default value:
'2'.
|
Specifies the proportional width of the left part of a page header. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| header-right |
String.
Default value: ''.
|
Specifies the contents of the right part of a page header. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| header-right-width |
String representing an integer larger than or equal to 1.
Default value:
'2'.
|
Specifies the proportional width of the right part of a page header. See Specifying a header or a
footer.
Supports a
conditional specification.
|
| header-separator | Allowed values are: 'yes' and 'no'.
Default value:
'yes'.
|
Specifies whether an horizontal rule should be drawn below the page
header.
|
| hyphenate |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Specifies whether words may be hyphenated.
|
| index-column-count |
Positive integer.
Default value: '2'.
|
The number of columns of index pages.
|
| index-column-gap |
Length.
Default value: '2em'.
|
The distance which separates columns in index pages.
|
| justified |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Specifies whether text (e.g. in paragraphs) should be justified (that is,
flush left and right) or just left aligned (that is, flush left and ragged
right).
|
| link-bullet |
A string containing a single character.
Default value:
'•' (BULLET).
|
Specify which character is inserted before the text of a
<link> element.Changing the value of this parameter
may imply changing the font-family attribute of the attribute-set
link-bullet.
|
| menucascade-separator |
A string containing a single character.
Default value:
'→' (RIGHTWARDS ARROW).
|
Specify which character is used to separate the child elements of a
<menucascade> element.Changing the value of this
parameter may imply changing the font-family attribute of the attribute-set
menucascade-separator.
|
| note-icon-height |
Length. A length may have a unit. Default is px.
Default value:
'32'. '7mm' for the XSLT stylesheets that generate
XSL-FO.
|
The height of a note icon.
|
| note-icon-suffix |
Default value: '.png'.
|
The suffix of a note icon.
The root name of a note icon should be
identical to the value of the
@type attribute it represents. For
example, if note-icon-suffix='.svg', the default resources directory is
expected to contain note.svg, important.svg,
caution.svg, etc.In principle, there is no need for an
end-user to specify any of the note-icon-suffix, note-icon-width or
note-icon-height parameters.
|
| note-icon-width |
Length. A length may have a unit. Default is px.
Default
value: '32'. '7mm' for the XSLT stylesheets that generate
XSL-FO.
|
The width of a note icon.
|
| page-bottom-margin |
Length.
Default value: '0.5in'.
|
See Page areas below.
|
| page-height |
Length. Example: '297mm'.
Default value: depends on
paper-type.
|
The height of the printed page.
|
| page-inner-margin |
Length.
Default value: if parameter two-sided is specified as
'yes' then '1.25in' otherwise '1in'.
|
See Page areas below.
|
| page-orientation |
Allowed values are: 'portrait' and
'landscape'.
Default value: 'portrait'.
|
The orientation of the printed page.
|
| page-outer-margin |
Length.
Default value: if parameter two-sided is specified as
'yes' then '0.75in' otherwise '1in'.
|
See Page areas below.
|
| page-ref-after |
String.
Default value: ''.
|
Appended after the page number pointed to by an
<xref>
or <link> element. Ignored unless show-xref-page='yes'
or show-link-page='yes'.When both page-ref-after and
page-ref-before are specified as the empty string, in fact, this specifies
that the generated string must be the localized equivalent of "on
page".
|
| page-ref-before |
String.
Default value: ''.
|
Separates the text of an
<xref> or
<link> element from the page number it points to. Ignored
unless show-xref-page='yes' or show-link-page='yes'. |
| page-top-margin |
Length.
Default value: '0.5in'.
|
See Page areas below.
|
| page-width |
Length. Example: '8.5in'.
Default value: depends on
paper-type.
|
The width of the printed page.
|
| paper-type |
Allowed values are: 'Letter', 'Legal', 'Ledger',
'Tabloid', 'A0', 'A1', 'A2', 'A3',
'A4', 'A5', 'A6', 'A7', 'A8',
'A9', 'A10', 'B0', 'B1', 'B2',
'B3', 'B4', 'B5', 'B6', 'B7',
'B8', 'B9', 'B10', 'C0', 'C1',
'C2', 'C3', 'C4', 'C5', 'C6',
'C7', 'C8', 'C9', 'C10'
(case-insensitive).
Default value: 'A4'.
|
A convenient way to specify the size of the printed page.
It is also
possible to specify a custom paper type by ignoring the paper-type parameter and
directly specifying the page-width and
page-height parameters.
|
| pdf-outline |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Specifies whether PDF bookmarks should be generated.
Supported by the
'XEP' , 'FOP' and 'AHF' XSL-FO processors. Not relevant,
and thus ignored by 'XFC'.
|
| show-external-links |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Specifies whether the external URL referenced by an
<xref> or <link> element should be
displayed right after the text contained by this element.Example:
show-external-links='yes'causes <xref
href="http://www.oasis-open.org/">Oasis</xref> to be rendered as
follows: Oasis [http://www.oasis-open.org/].
|
| show-imagemap-links |
Allowed values are: 'yes' and 'no'.
Default value:
'yes'.
|
Specifies whether a numbered list should be generated for an
<imagemap> element, with one list item per
<area> element.A list item contains the link specified
by the
<area> element. No list items are generated for “dead
areas” (<area> elements specifying no link at
all). |
| show-link-page |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Same as show-xref-page but for
<link> elements. |
| show-xref-page |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Specifies whether the page number corresponding to the internal link
target referenced by an
<xref> element should be
displayed right after the text contained by this element.Example:
show-xref-page='yes'causes <xref
href="introduction.dita">Introduction</xref> to be rendered as
follows: Introduction [3].
|
| title-color |
A string representing a color.
Default value:
'black'.
|
Specifies the color used for the text of topic (of any kind)
titles.
|
| title-font-family |
A string containing one or more font families separated by
commas.
Default value: 'sans-serif'.
|
Specifies the family of the font used for the text of topic (of any kind)
titles.
|
| two-sided |
Allowed values are: 'yes' and 'no'.
Default value:
'no'.
|
Specifies whether the document should be printed double sided.
|
| ul-li-bullets |
A string containing one or more single characters separated by
whitespace.
Default value: '• –' (BULLET,
EN DASH).
|
Specify which bullet character to use for an
<ul>/<li> element. Additional
characters are used for nested <li> elements.For
example, if ul-li-bullets="* - +", "*" will be used for
<ul>/<li> elements, "-" will
be used for <ul>/<li> elements contained
in a <ul>/<li> element and "+"
will be used for <ul>/<li> elements
nested in two <ul>/<li>
elements.Changing the value of this parameter may imply changing the
font-family attribute of the attribute-set
ul-li-label.
|
| unordered-step-bullets |
A string containing one or more single characters separated by
whitespace.
Default value: '•' (BULLET,
EN DASH).
|
Specify which bullet character to use for a
<steps-unordered>/<step> element.
Additional characters are used for nested
<steps-unordered>/<step>
elements.Changing the value of this parameter may imply changing the
font-family attribute of the attribute-set
unordered-step-label.
|
| watermark |
Allowed values are one or more of 'blank', 'title',
'toc', 'booklist', 'frontmatter', 'body',
'backmatter', 'index', 'all' separated by
whitespace.
Default value: 'all'.
|
Specifies which pages in the output document are to be given a
watermark.
By default, all pages are given a watermark. If for example,
parameter watermark is set to 'frontmatter body backmatter', then
only the pages which are part of the front matter, body and back matter of the output
document are given a watermark. The title page, TOC pages, etc, are not given a
watermark.
No effect unless parameter watermark-image is specified.
|
| xfc-render-as-table |
A string containing zero or more DITA element names separated by
whitespace.
Default value: 'note'.
|
Specifies whether XMLmind XSL-FO
Converter
should render the
<fo:block>s representing specified DITA elements as
<fo:table>s.This parameter enables a workaround for a
limitation of XMLmind XSL-FO Converter: a
<fo:block> having a
border and/or background color and containing several other blocks, lists or tables
is
very poorly rendered in RTF, WML, DOCX and ODT. |
